Simrad S2009 Fish Finder

The Simrad S2009 Fish Finder combines CHIRP-enabled sonar with a 9-inch portrait display for maximum vertical detail. With intuitive keypad-driven operation, it ensures reliable control in all conditions. This dedicated echosounder integrates seamlessly with other Simrad displays, making it a perfect solution for charter captains and long-range sportfishing vessels that need a self-contained sonar platform.

Key Features:

• Integrated CHIRP Echosounder: The S2009 features a built-in echosounder with CHIRP technology for higher resolution, improved target separation, and greater clarity than traditional sonar.
• 9-inch Portrait Display: The compact display maximizes screen size where limited mounting space is available, offering a vertical layout that shows the water column in great detail.
• Simple Operation: The S2009 features 8 direct-access menu keys for easy, one-button access to settings and features, even in rough seas or when using gloves.
• Networking & Expansion: Easily share sonar data with other Simrad displays and integrate with devices via NMEA 2000 and NMEA 0183 connectivity.
• Flexible Mounting: The S2009 can be installed with either a bracket or flush-mount, with a bracket included in the package for convenience.

Additional Features:

• High brightness display, perfect for outdoor installations
• High depth penetration and fast ping speed for optimal fish-finding
• Customizable view to highlight targets of interest for better visibility

Ideal for both casual fishermen and professionals, the Simrad S2009 offers easy installation, high performance, and a user-friendly interface for an enhanced fishing experience.

Display

Display Resolution: 480 x 800

Screen Brightness: 1200 cd/m

Viewing Angles: 110 x 160

Physical

Compass Safe: 0.65 m (25.6″)

Dimensions (W x H x D): 224 x 260 x 61 mm (8.8 x 10.2 x 2.4 in)

Weight: 2 kg (4.4 lbs)

Electrical

Power Consumption (max): 11 W

Power Consumption (typical): 11 W

Recommended Fuse Rating: 3A

Supply Voltage: 12/24 V DC (10.8 – 31.2 V DC)

Environment

Operating Temperature Range: -15C to +55C (5 F to 131 F)

Storage Temperature Range: -25C to +55C (-13 F to 131 F)

Waterproof Rating: IPX7

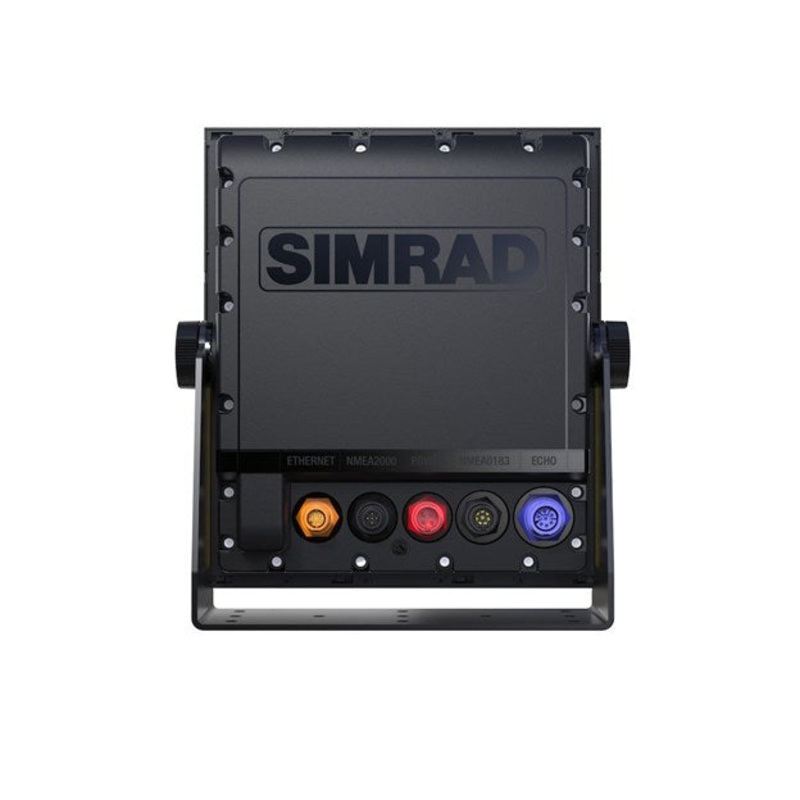

Connectivity

Ethernet Ports: 1 x 5 pin Yellow, 1 Mbit

N2K PGNs Supported (Receive): Extensive list of supported PGNs (see original for details)

SD Card Storage: 2 microSD slots, max. 32 GB each (larger if formatted to NTFS)

Cartography

Charts Supported: C-MAP Reveal, C-MAP Discover, C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners

Autopilot

Manoeuvres: Turn Patterns, Course Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S

GPS

Correction: DGPS, WAAS

GPS Receiver Channels: 16

Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)

Time to First Fix: Cold start 50 sec, Satellite Reacquisition 5 sec

Update Rate: 10 Hz

Sonar Compatibility

Sonar Output Power: 1 kW

Sonar Compatibility: Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders

MFD

AIS: Receive AIS data over NMEA 2000 or NMEA 0183

Autopilot: Full autopilot control and commissioning

Cartography Included: World basemap, detailed chart card required

Digital Switching: C-Zone, Naviop

Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points

Other

Interface: Hybrid multi-touch screen, buttons, and rotary knob

Languages Supported: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish, and more

Warranty Period: 2 Years
