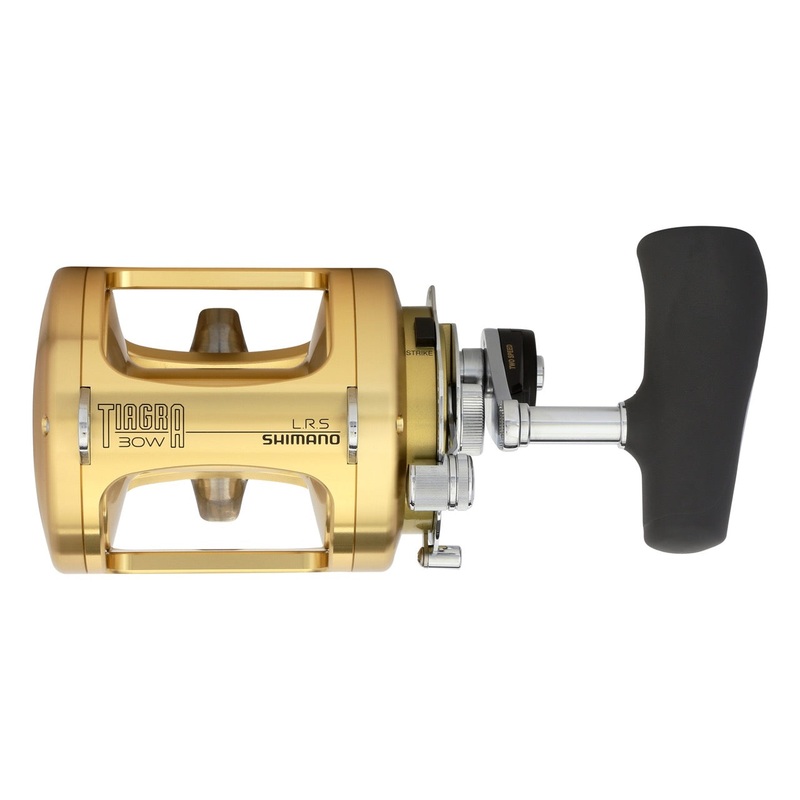

Shimano – Tiagra Two-Speed Lever Drag Reels

The number one choice of serious offshore anglers and captains, Tiagra reels feature an innovative hydrothermal drag system that virtually eliminates the drag setting variances that affect today’s big-game reels. The Tiagra series offers the strength and reliability of a solid aluminum frame, making these reels ideal for fishing with heavier line for giant fish. These reels also perfectly suited for long-range fishing.

Features:

• HAGANE Body – The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler’s actions directly into cranking power, increasing efficiency through strength.

• HEG – HEG consists of not only the gears, but also the frame, setplate, and handle-side sideplate. First we increased the size of the drive gear and the pinion gear to offer increased leverage and power. By using a one-piece frame that incorporates the setplate and adding a one-piece stamped sideplate, we have eliminated flex in the drive train that causes gears to bind under pressure.

• Cross Carbon Drag – The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.

• EI – Shimano’s proprietary surface treatment of the spool and body to provide more than double the corrosion resistance compared to a conventional surface treatment.

• A-RB Bearings – A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing. These bearings will last at least 10 times longer than standard stainless-steel ball bearings in high salinity environments.

Specifications:

PRODUCT CODE WEIGHT POWERPRO LINE CAPACITY GEAR RATIO MAX DRAG MONO LINE CAPACITY (lb/yds) RETRIEVE LINE RETRIEVE PER CRANK LOWER GEAR RATIO LOWER LINE RETRIEVE PER CRANK BEARINGS TI16 37.4oz 50/1210, 65/680, 80/520 3.9:1 31lb 16/980, 20/670, 30/430 Right 36in 1.7:1 16in 6 TI20A 49.7oz 50/1225, 65/720, 80/525 3.9:1 26lb 20/690, 30/470 Right 41in 1.7:1 18in 4 TI30A 52.4oz 50/1805, 65/1065, 80/770 3.9:1 35lb 30/700, 50/420 Right 41in 1.7:1 18in 4 TI30WLRSA 55.6oz 65/1435, 80/1180, 100/865 3.9:1 35lb 30/935, 50/570 Right 41in 1.7:1 18in 4 TI50A 83.4oz 80/1135, 100/930, 150/865 3.1:1 26lb 50/600 Right 37in 1.3:1 15in 4 TI50WA 86.2oz 80/1575, 100/1235, 150/1180 3.1:1 26lb 50/850 Right 37in 1.3:1 15in 4 TI50WLRSA 86.2oz 80/1575, 100/1235, 150/1180 3.1:1 40lb 80/550 Right 37in 1.3:1 15in 4 TI80WA 115.2oz 100/2445, 150/2365, 200/1920 2.5:1 40lb 80/950 Right 37in 1.3:1 15in 4 TI130A 174.1oz 150/3315, 200/2770, 250/1955 2.1:1 88lb 130/1000 Right 39in 1.15:1 22in 6
