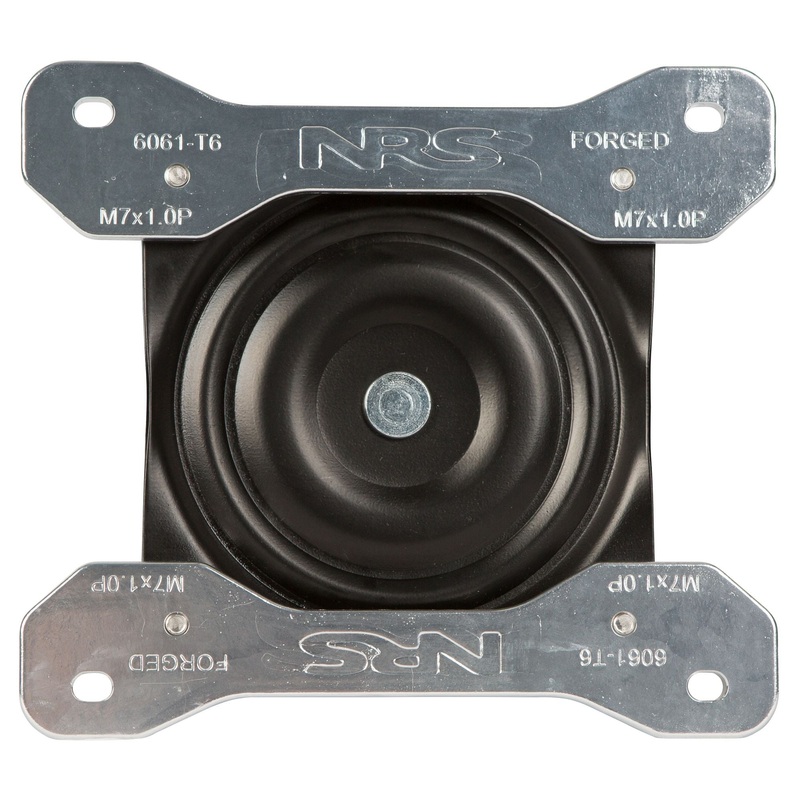

NRS Swivel and Plates for Padded Raft Seats

Turn your NRS Padded Raft Seat into a swivel seat with the NRS Swivel and Plates. Easily bolt the plates and swivel base onto your existing seat bar or the Universal Seat Mount. The unit has a swivel base that rotates 360 degrees and two hot-forged aluminum plates with bolt holes in a 7″ x 7.5″ pattern. The unit has four 1/4″-20 x 1″ bolts, lock nuts, and eight flat washers. If your seat bar is older, drill four 1/4″ holes in a 5.25″ x 5.25″ pattern. Transform your paddling and angling adventures on your raft by adding the NRS Swivel and Plates for Padded Raft Seats.

Features:

• The unit has a swivel base, allowing the seat to rotate 360 degrees, and two hot-forged aluminum plates bolted.
• The two aluminum plates have holes in the 7″ x 7.5″ bolt pattern for the NRS Low-Back and High-Back Seats. Attach your seat to the aluminum plates using the bolts included with it.
• All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the swivel’s 5.25″ x 5.25″ pattern.
• If you have an older seat bar without those holes, you can drill four 1/4″ holes in that 5.25″ x 5.25″ pattern.
• The unit has mounting hardware: 4 1/4″-20 x 1″ bolts, lock nuts, and eight flat washers.
• The Universal Seat Mount, Item # 94015.01, has hole patterns 7″ x 7.5″ and 5.25″ x 5.25″. It can be used to mount your swivel seat anywhere on the 1 5/8″ frame pipe.
• Seat plate measurements – 8.25″ x 9.25″
• Swivel plate measurements – 6.25″ x 6.25″
• Seat plate bolt hole pattern – 7″ x 7.5″
• Swivel plate bolt hole pattern – 5.25″ x 5.25″
