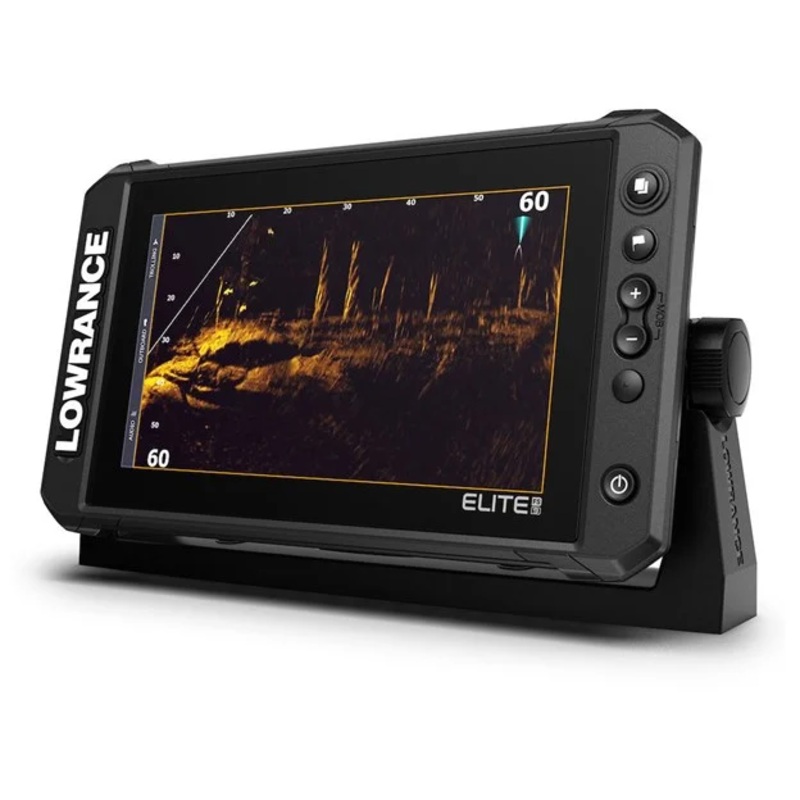

The Lowrance Elite FS 9 is the ultimate fishing companion, combining the power of ActiveTarget 2 Live Sonar, Active Imaging HD, and preloaded C-MAP AUS/NZ Enhanced Embedded charts to help you find more fish. The 9-inch multi-touch display offers high-resolution clarity, making it easier to spot fish and structure in real time. With ActiveTarget 2, you can track fish movements and see how they react to your lure, providing valuable insights for better fishing techniques. The Elite FS 9 also features Active Imaging 3-in-1 sonar, offering CHIRP, SideScan, and DownScan Imaging with FishReveal for clear identification of fish from structure. Preloaded C-MAP charts help you identify fishing areas like drop-offs and ledges, and with integrated wireless, NMEA 2000, and Ethernet connectivity, you can build a complete marine system. This fishfinder is also compatible with Active Imaging HD and offers easy routing with C-MAP Easy Routing and Navionics Autorouting. The Elite FS 9 is the perfect tool for serious anglers who demand top-tier sonar and charting capabilities, giving you all the tools needed to catch more fish and navigate with precision.
Display
Backlight Color: Pure White LED
Display Resolution: 800 x 480
Screen Brightness: >1200 nits
Viewing Angles: 50 top, 60 bottom, 70 left/right
Connectivity
Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports: 1 x 100Mbit
Wi-Fi Connectivity: Internal 802.11b/g/n
N2K PGNs Supported: Receive and Transmit various PGNs (listed in original)
SD Card Storage: 1 microSD card up to 32 GB
Video: None
Cartography
Charts Supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners
Electrical
Power Consumption (max): 2.0A @ 13VDC with backlight on full
Power Consumption (min): 2.0A @ 13VDC with backlight on full
Power Consumption (typical): 2.0A @ 13VDC with backlight on full
Recommended Fuse Rating: 3A
Supply Voltage: 12V DC (10.8-17VDC)
Environment
Humidity: 60C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5F to 131F (-15C to 55C)
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: 4F to 140F (-20C to 60C)
Waterproof Rating: IPX7 with card door closed
GPS
Correction: DGPS, WAAS, MSAS, EGNOS, GLONASS
GPS Receiver Channels: 16
Position Accuracy: 20m RMS
Time to First Fix: 30s
Update Rate: 10 Hz
MFD
AIS: AIS Chart overlay. Target vessel details.
Autopilot: Outboard Pilot, Ghost Trolling Motor, MotorGuide Xi5/Xi3 Trolling Motor (requires MotorGuide PinPoint Gateway)
Cartography Included: C-MAP Contour + AUS/NZ (AUS/NZ models), Navionics basemap (AMER, AUS/NZ and ROW models)
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
Weather: SiriusXM via WM-4 (USA only)
Sonar Compatibility
Sonar Output Power: 1 kW
Sonar Compatibility: Integrated: CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan
Compatible with: SonarHub, StructureScan, StructureScan 3D, LiveSight, Active Target
Physical
Compass Safe: 12″ (300mm)
Mounting Type: Gimbal Bracket or Dash Flush Mount
Weight: 2.7 lbs (1.2 kg)
Other
Interface: Multi-Touch Touchscreen, Zoom +/- MOB = (+/- combined), Pages, Waypoint, Light/Power
Languages Supported: Standard Language Pack: Afrikaans, Danish, German, English (US), Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil), Swedish, and more
Warranty Period: 2 Years + 3 additional years of upgrade options totaling 5 years
