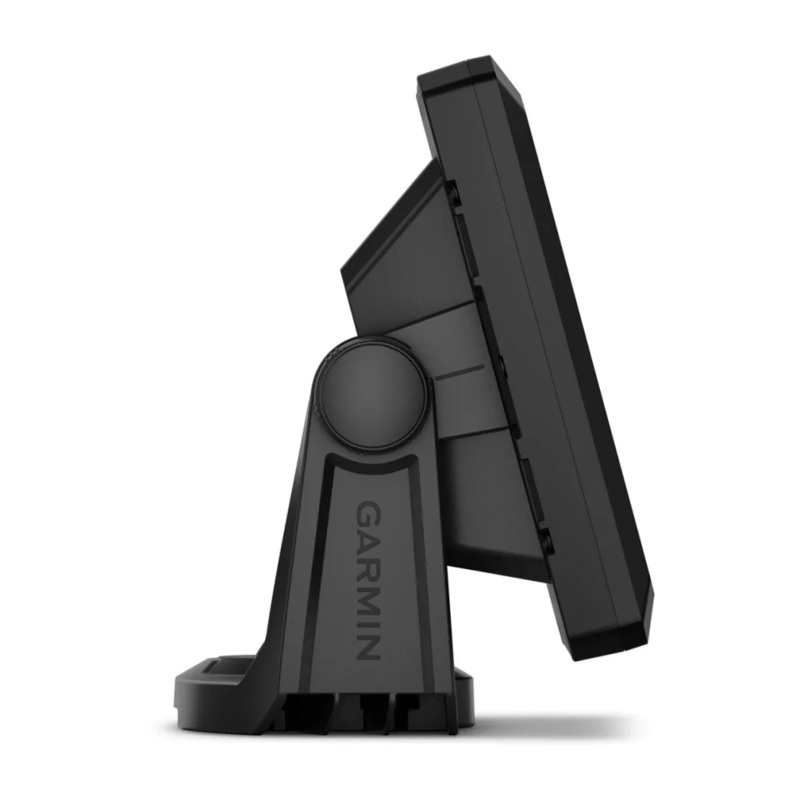

The Garmin Echomap UHD2 75CV is a top-tier sounder for serious anglers. Featuring a 7-inch keyed display, it offers ease of use and navigation at any time of day. Simple to install, the unit comes with a GT20 transducer supporting both traditional and ClearV scanning sonars. For anglers wishing to use LiveScope, this sonar technology is fully supported with an additional transducer (sold separately). Garmin’s vivid colour palettes allow for easy differentiation between bait and fish. The Echomap UHD2 also comes with preloaded Garmin Navionics+ charts for Australian and New Zealand coastal and inland waters, eliminating the need for extra mapping software. Additional features include built-in Wi-Fi and multi-band GPS, making this model ideal for almost all fishing applications and boat types across the country.
|
Dimensions: 23.2 x 14.3 x 6.7 cm
Display Size: 15.5 x 8.7 cm
Display Resolution: 800 x 480 pixels
Display Type: WVGA, TN
Weight: 0.7 kg
Waterproof Rating: IPX7
Mounting Options: Bail or Flush
Data Cards: 1 micro SD, 32 GB max size
Waypoints: 5000
Track Points: 50000
Tracks: 50 saved tracks
Navigation Routes: 100
Built-In Receiver: Yes
Receiver: 5 Hz
GPS: Yes
Supports WAAS: Yes
Garmin Navionics+ (Coastal and Inland): Yes
BlueChart (Coastal): Yes
ActiveCaptain Mobile App: Yes
Displays Sonar: Yes
Power Output: 500W
Traditional Sonar: Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu Sonar: Built-in 260/455/800/1200 kHz
Garmin WiFi Network (Local Connection): Yes
Power Input: 9 – 18 V DC
Typical Current Draw at 12V DC: 1 amp
Max Current Draw at 12V DC: 1.5 amp
Max Power Usage at 10V DC: 18W
