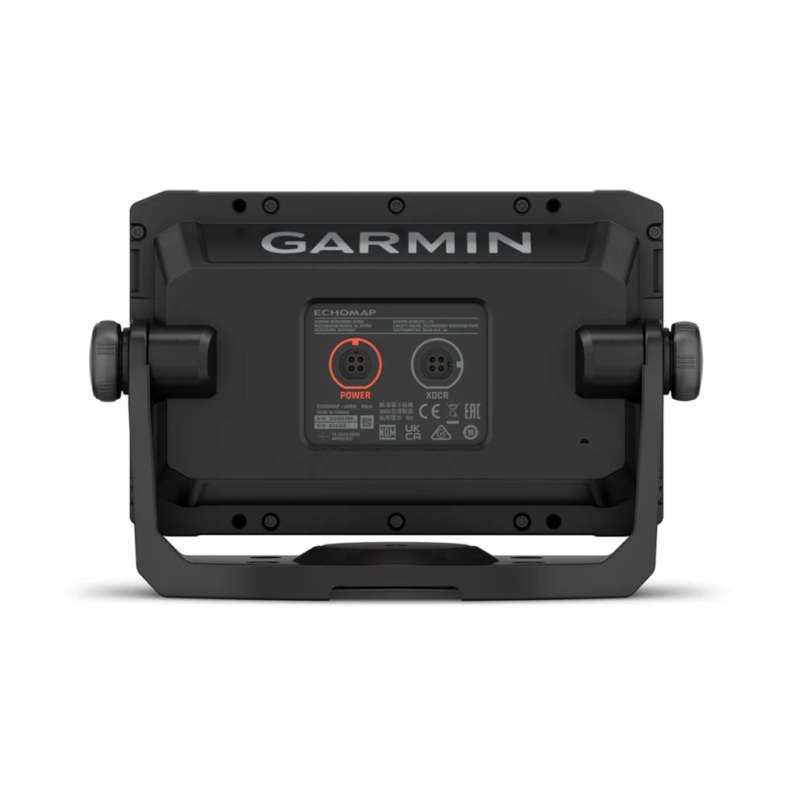

Find new grounds and catch more fish with the Garmin Echomap UHD2 55CV Combo. Featuring a 5-inch keyed display, this model is ideal for smaller vessels with limited dash space. The included GT20 transducer supports both traditional and SideV scanning sonars, delivering vivid colour palettes for easy structure identification, bait finding, and fish targeting. With preloaded Garmin Navionics+ charts for Australia and NZ, built-in Wi-Fi, NMEA 2000 compatibility, multi-band GPS, and support for LiveScope, this sounder takes your fishing experience to the next level without the need for additional mapping software.
Dimensions: 18.8 x 12.2 x 6.2 cm
Display Size: 10.9 x 6.6 cm
Display Resolution: 800 x 480 pixels
Display Type: WVGA, IPS
Weight: 0.5 kg
Waterproof Rating: IPX7
Mounting Options: Bail or Flush
Data Cards: 1 micro SD
Waypoints: 5000
Track Points: 50000
Tracks: 50 saved tracks
Navigation Routes: 100
Built-In Receiver: Yes
Receiver: 5 Hz
GPS: Yes
Supports WAAS: Yes
Garmin Navionics+ (Coastal and Inland): Yes
BlueChart (Coastal): Yes
ActiveCaptain Mobile App: Yes
Displays Sonar: Yes
Power Output: 500W
Traditional Sonar: Built-in
ClearVu Sonar: Built-in 260/455/800/1200 kHz
Garmin WiFi Network (Local Connection): Yes
Power Input: 9 – 18 V DC
Typical Current Draw at 12V DC: 1 amp
Max Current Draw at 12V DC: 1.5 amp
Max Power Usage at 10V DC: 18W
